SE634A Pressure Transmitter PCB Circuit Board HART 4 To 20mA Output OEM Pressure Transmitter Accessories

Product Categories
SENSE Instruments Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

SE634A Pressure Transmitter PCB Circuit Board HART 4 To 20mA Output OEM Pressure Transmitter Accessories

Brand Name : SENSE

Model Number : SE634A

Certification : HART

Place of Origin : Shanghai China

MOQ : 10PCS

Payment Terms : T/T

Supply Ability : 10000PCS / Month

Delivery Time : 5-8 workdays

Packaging Details : Carton packing

Power supply : 9 to 45V DC

Output : 4 to 20mA + HART

Material : PCB

Application : pressure transmitter

Color : green

Size : 21.5*33m

Storage : -40 to 85℃

Long-term stability : ≤0.05%/year

Contact Now

HART protocl OEM pressure transmitter Module SE634A PCB circuit board 4 to 20mA output Pressure transmitter accessoriesHART pressure circuit board Pressure transmitter board card



  • Popular sensors acceptable
  • Self-stability and filter setup
  • Backup and restore data
  • Excellent EMC performance
  • Small size, simple mountin
    ​

The SE634A with HART-protocol is compact.

The SE634A is suitable for various sensors and converts input signals into 4 to 20 mA analogue output signal.
The module is protected against miswiring and transient overvoltages.



Application areas
  • pressure sensors
  • differential sensors
  • load cells
  • magnetic field sensors
  • strain gauge
  • resistor of 2/3/4 wires

  Power supply (polarity protected)
  Supply voltage
     9-45 VDC

 Input

  2-wire sensor
    Such as:2-wire resistor, magnetic float ball,
    magnetic rotating pole, etc
  3-wire sensor
    Such as:3-wire resistor, E+H Ceracore II,
    E+H Ceracore M, etc.
  4-wire sensor
    Such as:4-wire resistor, all bridge sensors, etc.
  mV
    Such as: external voltage, etc.
  Sensor supply
    Constant voltage,constant current

  Output signal
   2-wire-system
   4...20 mA with superimposed communication signal for HART protocol

   Signal on alarm

   3.8 mA/22.8mA others on request

   Load

   Max.(Vpower supply -12 V)/0.02 A

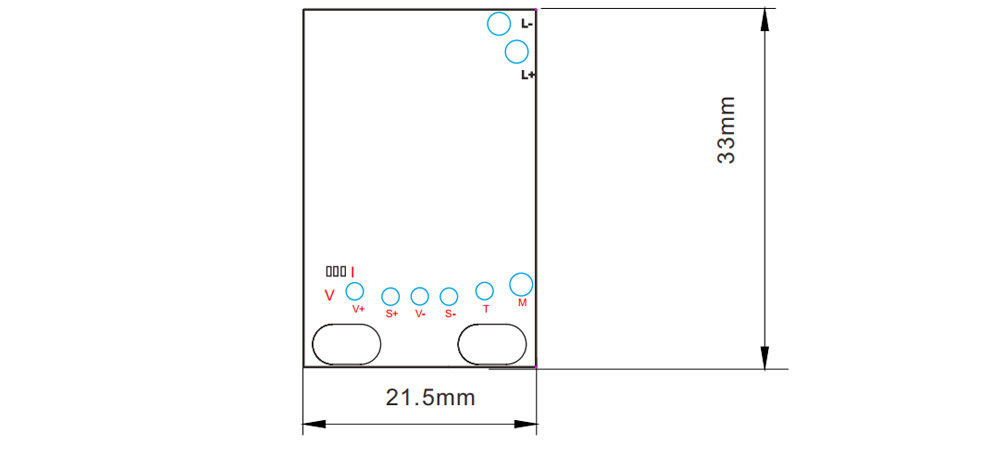

Dimensions(mm)

SE634A Pressure Transmitter PCB Circuit Board HART 4 To 20mA Output OEM Pressure Transmitter Accessories

Electrical Connection
SE634A Pressure Transmitter PCB Circuit Board HART 4 To 20mA Output OEM Pressure Transmitter Accessories
